Dräger PAS® Colt

Dräger PAS® Colt

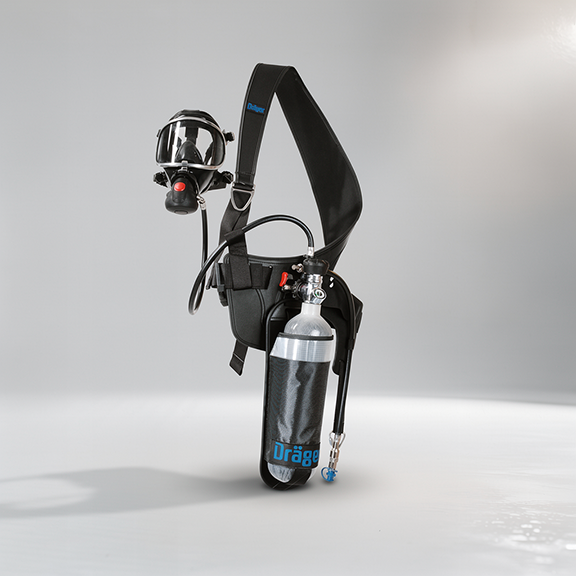

Dräger PAS Colt is an emergency escape and short-duration short-breathing apparatus, with a technologically developed short-duration emergency escape and breathing system. The device’s harness, which is mounted on the hip, is shape-retentive for ease of use, and the facility of modularity with the drop-down cylinder makes it easier to use with confined space work. The device is easy to maintain, with machine washable harness and with several cylinder and configuration options, and can be used for a variety of industrial and emergency purposes.Enquire Now

Enguire Now

Product Highlights

Categories , Brand:




    Features

    • Ergonomically contoured waist-mounted harness with shape retention for easy and convenient donning
    • Modular ‘drop down’ facility with independent module featuring unclipping of the cylinder from the waistbelt for entry into confined space
    • Machine washable harness with free cleaning and maintenance
    • Various configurations such as escape, entry, airline, and airline escape units with 10, 15, and 20-minute cylinder models
    • Can be used with optional automatic switch-over valve for quick changeover from external air to cylinder supply
    • Lightweight with compact size for simple mobility in narrow spaces
    • Easy and simple operation, even for a first-time user

    Specifications

    Specification                                 Details

    Standards                                       EN 402:2003 (Escape Units), EN 137-1:2006 (Short Duration Entry Units), EN 14593-1:2005 (Airline Units)

    Size (H x W x D)                            Min: 790 x 500 x 70 mm; Max: 950 x 500 x 70 mm

    Weight                                                       2.0 kg (Escape Unit) to 2.5 kg (Airline Unit)

    Cylinder Pressure                                200 or 300 bar

    Airline Pressure                                      6 – 9 bar

    1st Stage Output Pressure                7 bar

    1st Stage Output Flow                          > 600 l/min

    Lung Demand Valve Output Flow    > 400 l/min

    Whistle Activation Pressure               4 – 5 bar (escape), 100 bar (airline)

    Whistle Sound Level                             > 90 dBA

    Operating Temperature Range          -32°C to +70°C



    Applications

    • Emergency escape and short-duration entry in confined spaces and hazardous environments
    • Industrial operations requiring consistent breathing protection for short-term use
    • Rescue applications where fast donning and light equipment are needed
    • Use in chemical, petrochemical, and offshore industries for safe evacuation



    Certifications

    • tEN 402:2003 certified escape units
    • tEN 137-1:2006 certified short duration entry units
    • tEN 14593-1:2005 certified airline units
    • tComplies with high safety and performance requirements for industrial and emergency breathing equipment
