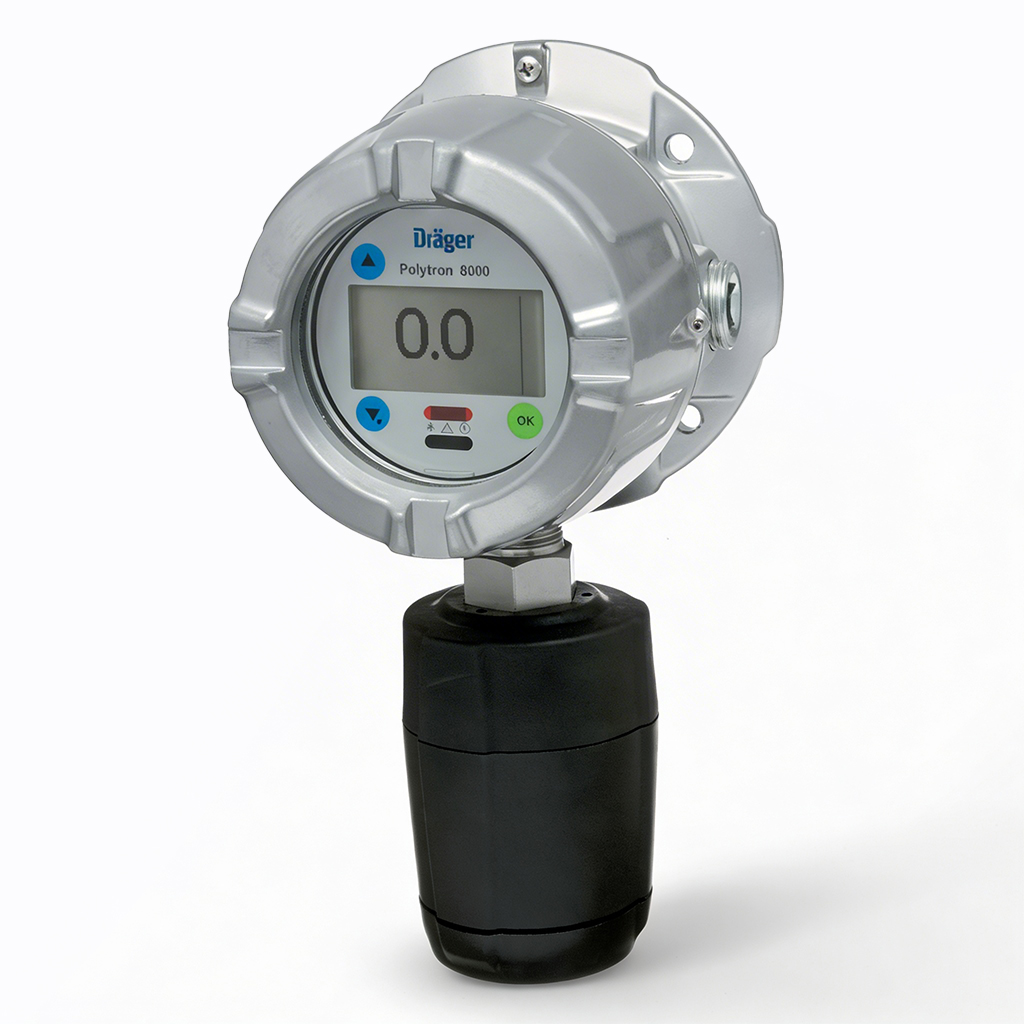

Dräger POLYTRON-8100 EC

– Smart Gas Monitoring with Fieldbus Protocols & Advanced DiagnosticsThe Polytron(R) 8100 EC is Dräger’s most advanced explosion-proof gas detector for toxic gases and oxygen. It integrates seamlessly with digital protocols like HART(R), Modbus, PROFIBUS(R), and FOUNDATION FieldbusTM, and features a plug-and-play DrägerSensor(R) with predictive maintenance diagnostics, extended lifespan, and high accuracy.Enquire Now

Product Highlights




    Features

    • Intelligent: HART®, Modbus, PROFIBUS® and FOUNDATION FieldbusTM are all compatible with Smart Connectivity….
    • The device is capable of detecting over 100 gases, including O2, Cl2, H2S and CO, as well as NH3, PH3, and others, making it widely compatible with the substance.
    • Smart sensor diagnostics use dongle for logging data, testing sensors and predictive measuring of the life of those sensors.
    • Explosion-proof housing is available in either SS316L or epoxy-coated aluminum, both of which are IP67 compliant.
    • Incorporate a Remote Sensor up to 30m from the location in Ex zones.

    Specifications

    Feature                                          Details.

    Detection                                   Toxic gases & Oxygen.

    Sensor                                      Plug-and-play DrägerSensor® EC. HART®, Modbus, PROFIBUS®:

    Analog output                        4–20mA.

    Power                                           10–30. VDC.

    Temperature                              -40°C to +65°C.

    NEMA 4X & 7 for protection IP65/66/67

    Relays 2. Alarm, 1. Fault (optional)

    Certifications           ATEX, IECEx, and SIL2

    Applications

    • Oil & gas platforms
    • Refineries and storage depots
    • Petrochemical and chemical processing plants
    • Pulp and paper industries
