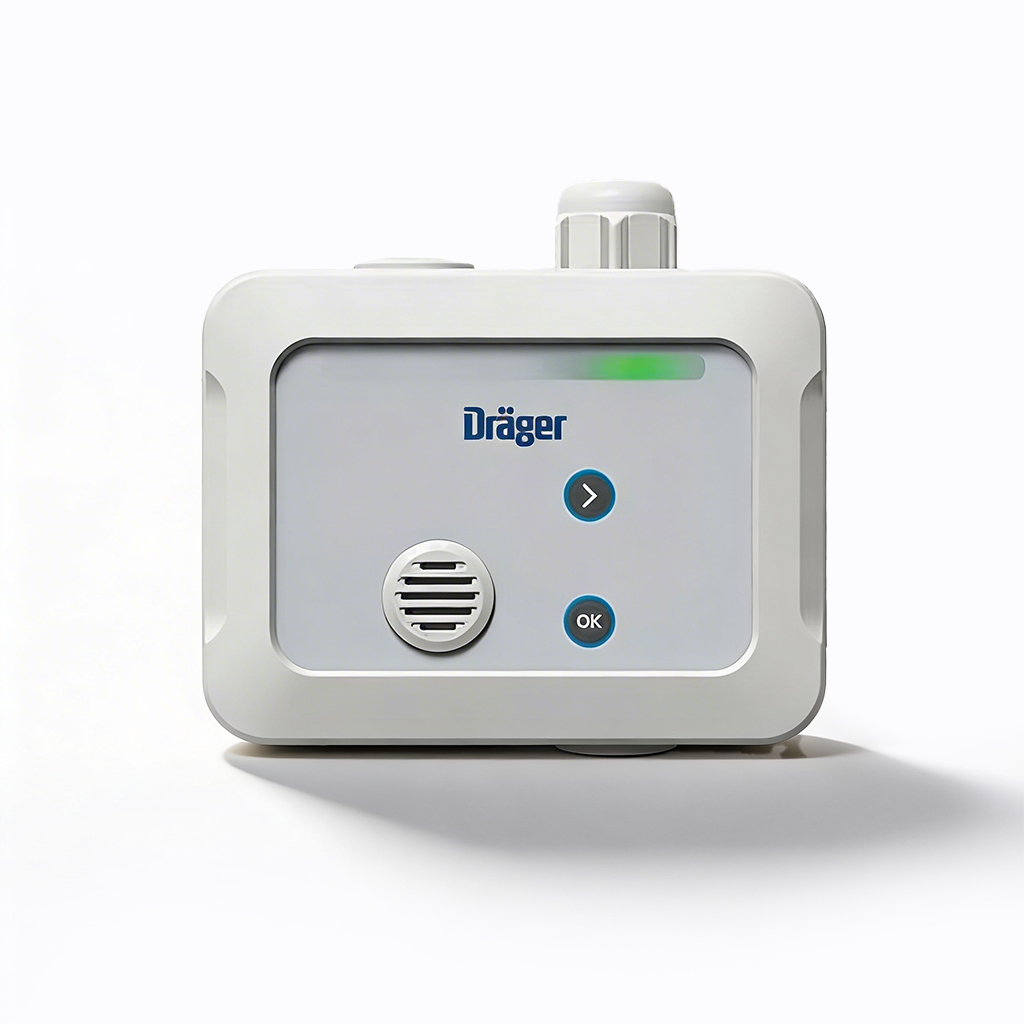

Dräger VarioGard 2320 IR

The CO2 detection process is both simple and cost-effective for non-hazardous areas. The Dräger VarioGard(R) 2320. For CO2 detection in non-Ex areas like breweries, cellars, and wineries, the detector is a stationary signal known as IR. Designed for HVAC and ambient air monitoring in commercial or controlled environments, it features an integrated IR sensor with 8 adjustable alarms and 4-20 mA analog output. Enquire Now

Product Highlights




    Features

    The infrared CO2 sensor is a trustworthy method of measurement, with long-calibration intervals that prevent premature detection. Why? There is a range of options for applications, including either ppm or % vol. The ABS housing is designed to be used both indoors and outdoors in a compact, rugged ABS case. Existing control systems incorporate a 4–20 mA signal as the standard output. The installation process is uncomplicated and straightforward, without any additional training or expertise

    Specifications

    Feature Details
    Gas Detected CO₂ (0–5% vol)
    Output 4–20 mA (3-wire)
    Alarms 8 adjustable thresholds + red LED & horn
    Enclosure ABS, IP65
    Power 16–30 VDC
    Dimensions 124 x 94 x 63 mm
    Weight 400g
    Certifications CE Compliant

    Applications

    • Beverage industry (breweries, bottling plants)
    • Cold storage rooms
    • HVAC and air-quality monitoring
    • Indoor safety control in non-Ex zones
