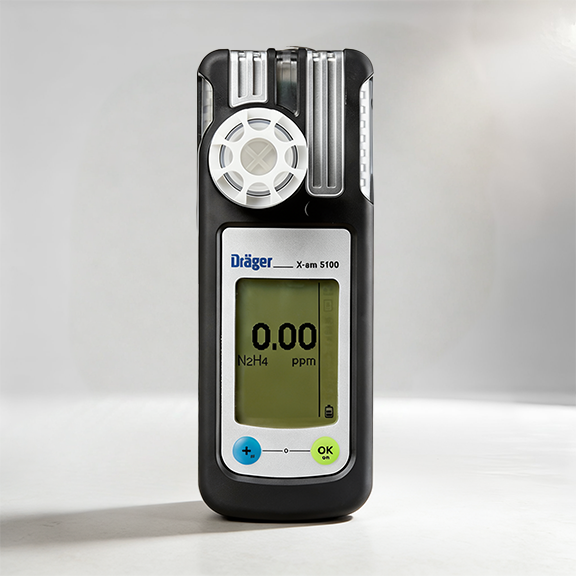

Dräger X-am® 5100

Features

Faces aggressive gases such as HF, HCl, H₂O₂, and hydrazine
Direct access to the gas guarantees quick response and precise measurements
Smartphone-inspired ergonomic design with simple two-button operation
360° visual warning, 90+ dB acoustic warning, and vibration for unyielding vigilance
Heavy-duty build with rubber boot and shock-proof sensors
Resistant to electromagnetic interference, shocks, and vibration
High-contrast display displays real-time values unambiguously
Wireless area monitoring with Dräger X-zone® 5500 interface
Internal data logger with over 1,000 hours of memory

Specification	Details
Gases Detected	HF, HCl, H₂O₂, Hydrazine
Sensor Technology	DrägerSensor XS EC series
Measurement Range	HF/HCl: 0–30 ppm, H₂O₂: 0–20 ppm, Hydrazine: 0–5 ppm
Resolution	HF/HCl & H₂O₂: 0.1 ppm, Hydrazine: 0.01 ppm
Response Time (t90)	HF/HCl & H₂O₂: 60 sec, Hydrazine: 180 sec
Alarms	Visual 360°, Multi-tone Audible >90 dB, Vibration
Display	Large high-contrast screen
Power Supply Options	NiMH rechargeable (~150 h), Alkaline (~180 h), High-capacity NiMH (~180 h)
Charging Time	< 4 hours
Battery Configurations	Modular, field-replaceable
Data Logging	Infrared download, >1,000 hours @ 1/minute interval
IP Rating	IP54
Operating Temperature	-20 to +50 °C
Pressure Range	700 to 1,300 mbar
Relative Humidity	10% to 90% r.h.
Dimensions (W x H x D)	48 x 130 x 61 mm
Weight	220 – 250 g

📌 Applications

ATEX: I M1 Ex ia I Ma / II 1G Ex ia IIC T4/T3 Ga
IECEx: Ex ia I Ma / Ex ia IIC T4/T3 Ga
CSA (US & Canada): Class I, Div. 1, Groups A-D / Zone 0
EAC Ex, CE, and compliant with EU Directives: 2014/30/EU (EMC), 2014/34/EU (ATEX)
