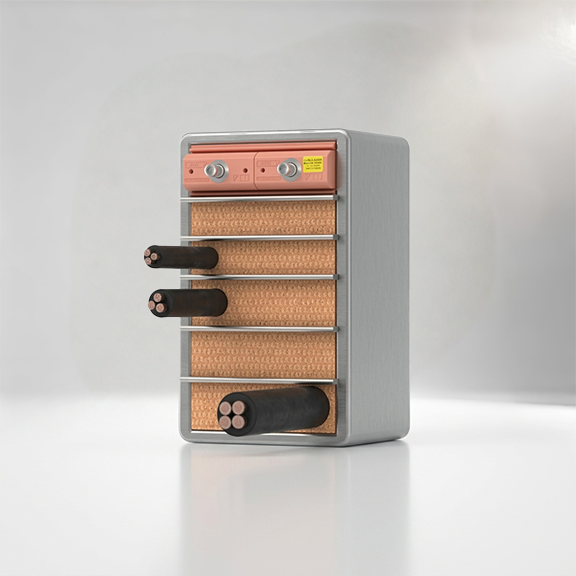

E-RGSK System

Features

Higher Frame Depth: 120 mm frame depth for those applications where water collection on the transit face is a concern.
EMC & EMP Protection: More than 100 dB shielding effectiveness from 10 kHz to 2 GHz, protection against lightning strike, nuclear bomb, and electronic sabotage.
Material Choices: Steel, stainless steel, or aluminum.
Frame Sizes: Standard frames in eight sizes (1–8) with internal widths of 60.5 ±1 mm or 120.5 ±1 mm.
Variability in Depth: 60 mm to 120 mm depth frames support diverse installation needs.
Multi-Configurations: Vertical and horizontal multi-frame configurations are offered.
Compliance: Satisfies Mil-Std-285 for EMI shield compliance.
Grounding & Bonding: Supports standard endpacking or presswedge for grounding and bonding purposes.mctbrattberg.com+2mctbrattberg.com+2mctbrattberg.com+2

Feature Specification

Internal Width 60.5 ±1 mm (Sizes 1, 3, 5, 7) / 120.5 ±1 mm (Sizes 2, 4, 6, 8)

Depth 120 mm

Material Options Steel, Stainless Steel, Aluminum

EMC Shielding 100 dB (10 kHz – 30 MHz), >60 dB (30 MHz – 600 MHz), >50 dB (600 MHz – 2 GHz)

Installation Type Welded into pre-cut hole in deck or bulkhead

Frame Sizes 1–8

Grounding/Bonding Compatible with standard presswedge or endpacking

________________________________________

⚙️ System Components

E-Standard Block: Integral copper sheet for EMI, EMP, and ESD protection.
E-AddBlock: Features cables of multiple sizes with EMC and grounding features.
E-SpareBlock: Closes unused space for future cable installation without sacrificing EMC and grounding integrity.
E-PTG Presswedge: Offers seal with added EMC and grounding protection.
E-STG Endpacking: Placed between compression plate and top of frame to achieve complete sealing.
Stayplate: Provides added stability between rows of blocks.
Blanking Plate: Seals the frame prior to block installation, offering IP65/66 ingress protection.
Lubricant: Facilitates easier and safer installation on Lycron components.
Installation Tools: Includes STG Endpacking Puller, Packing Tool L/S, Quick Release Spanner, Spacer Tool, Block Selector, EMC Marking Template, Tweezers, and Cable Separator.

______________________________________

Accessories & Add-ons

E-ALF Cabinet Seal: Simple to install without professional tools.
CCM – Casting Module: Helps in casting applications.
EMC Marking Template: Provides earth contact for all transit cables.
Welding Clamp: Makes welding safe during installation.electricanet.com+1tttbv.com+1

______________________________________

Applications

Marine & Offshore: Submarine, ships, and vessels needing high-performance sealing solutions.
Land-Based: Heavy-duty cable and pipe transits with EMC shielding applications.

• Industrial: Grounding and bonding facilities where safety and compliance are essential.
