Specifications
| Specification |
Details |

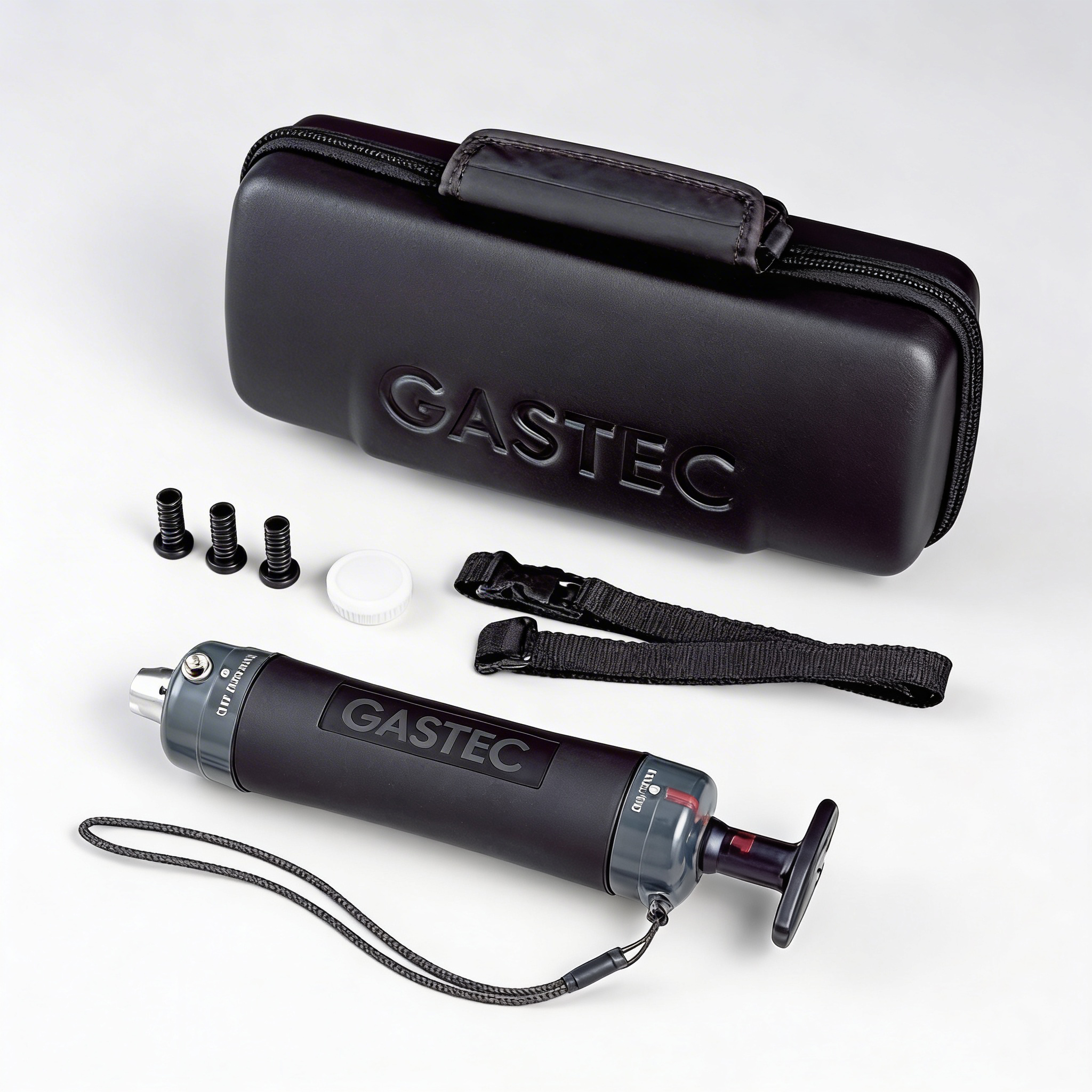

| Model |
GV‑100S |
| Pump Type |
Piston manual with dual stroke positions |
| Sample Volume |
100 mL (full), 50 mL (half) |
| Weight |
~245 g (per Gastec), ~270 g (per SKC) |
| Dimensions |
Compact carrying case with shoulder strap |
| Leakage Rate |
≤ 3 mL/min (EN1231 compliant) |
| Materials |
ABS resin (non-sparking), soft elastomer grip |
| Built-in Features |
Diamond tip breaker, tip storage bin, flow indicator |
| Included Accessories |
Lubricant, 3 rubber inlets, manual(s), shoulder case |
| Detection Compatibility |
Works exclusively with Gastec detector tubes |
⚙️ Sensor/Component Breakdown
- Piston mechanism: Smooth operation piston with smaller diameter for easy drawing
- Stroke selector: Lockable handle with red-line markers for accurate volume control
- Flow finish indicator: White disc pops out when full volume is drawn
- Tip breaker & storage: Diamond cutter plus waste glass storage bin
- Inlet components: Three rubber inlets included for tube attachment
- Pump body materials: Non-sparking ABS resin + soft elastomer grip
🧪 Accessories & Add-ons
- Extension hoses (5 m / 10 m / 30 m – Nos. 351A‑5/‑10/‑30) for sampling in confined spaces
- Tube tip holder (No. 722): doubles as tip breaker and holds up to 260 broken tips
- Twin tube holder (GV‑500): protects dual tubes and enhances safety
- Rubber caps (DTP‑1‑20 / DTP‑2‑20) for capping broken tube ends
- One-hand adapter (GV‑700): maintains vacuum so sampling can be done single-handedly
- Hot probe & holder (340 / 345A) for sampling high-temperature gases (60–600 °C)
- Extension pole (350BP‑2) for vertical/horizontal applications
- Pyrotec Pyrolyzers (Nos. 840 / 860) for gas thermal decomposition when used with pyro tubes
