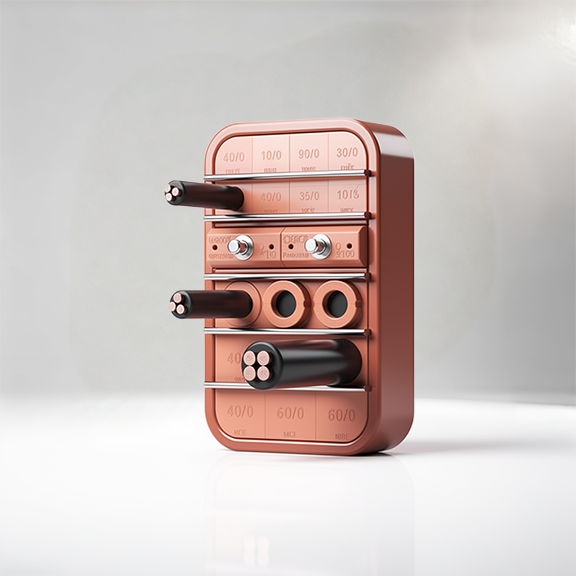

RGSC

Features

Rounded-Corner Frame: 30 mm corner radii reduce stress concentration and crack risk .
Heavy Load Capacity: Specifically engineered for installations subjected to elevated mechanical stress.
Weld-In Installation: Frame designed for welding into bulkheads and decks to ensure maximum structural stability
Fire, Water & Gas Sealing: Certified for sealing up to 6 bar water and 4 bar gas pressure even under catastrophic conditions .
Global Sealing Ratings: Maintains IP65–IP68 and NEMA 3R/4X/12 classification for ingress protection.
EMC & Ex Variants Available: Optional EMC shielding (E‑RGSC) and Ex-rated versions for hazardous-zone applications

Parameter	Specification
Frame Sizes	Sizes 1–8 with internal widths: 60.5 ± 1 mm (odd), 120.5 ± 1 mm (even)
Corner Radius	30 mm rounded corners
Frame Thickness	10 mm steel, stainless or aluminium
Frame Depth	Standard 60 mm
Installation Method	Welded permanently into structure
Water/Gas Pressure	Tested to 6 bar water, 4 bar gas in catastrophic mode
Ingress Protection	IP65–IP68; NEMA 3R, 4X, 12
Fire Ratings	A0, A60, H0, H60, H120
EMC / Ex Variants	E‑RGSC (EMC); RGSC Ex (ATEX/IECEx) available

⚙️ System Components

Reinforced Frame: Welded unit integrating rounded corners for stress reduction.
Rubber Insert Blocks: Lycron material, customized to cable shapes and diameters.
Compression Components: Uniformly applied to maintain a secure seal.
Stayplates & Endpacking: Support sealing integrity and reinforce compression.

🧪 Accessories & Variants

E‑RGSC: EMC-shielded for lightning, EMP, and EMI protection
RGSC Ex: Explosion-proof version certified for ATEX/IECEx hazardous zones
Welding Clamp: Maintains frame dimensions and precision during welding
Tool Set: Includes block selectors, sealing tools, endpacking pullers, spanners, and gaskets.

📌 Applications

Industry / Use Case	Description
Offshore Oil & Gas Platforms	Reliable cable sealing for high-load deck and bulkhead penetrations
Naval & Commercial Shipping Vessels	Durable transit resisting hull stress and corrosion
Submarines	Withstands hull flexing and deep-sea pressure under heavy loads
Heavy Industrial Installations	High-mechanical-load wiring in plants, refineries, and power stations

ABS, DNV‑GL, Lloyd’s Register – globally recognized marine certifications.
IECEx / ATEX – Ex and EMC (E‑RGSC) ratings for hazardous areas.
CE Marked, IP66–IP68, NEMA3R/4X/12 – international sealing and safety standards.
Fire Resistance – Classified A0 to H120 for structural fire integrity.
