Trigger Regulator

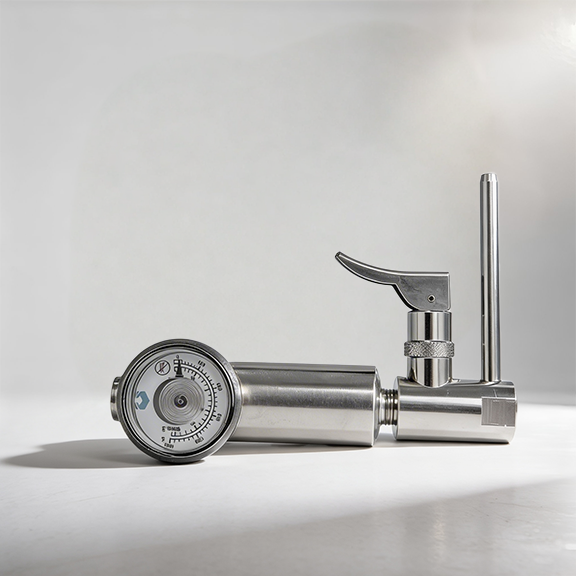

– Instant-On Fixed Flow Regulator for Quick Calibration & Portable Gas ApplicationsThe Trigger Fixed Flow Regulator by SGI is a manual push-button style fixed flow regulator engineered for rapid, controlled gas release in field calibration and portable detection scenarios. Designed for instantaneous gas output at a pre-set flow rate, it’s widely used with non-refillable calibration gas cylinders for on-the-go applications where speed, simplicity, and reliability matter.Ideal for use with multi-gas detectors and environmental testing instruments, this regulator ensures accurate delivery without the need for complex valve adjustments-just press and release.Enquire Now

Product Highlights

Type: Brand:




    Features

    • Trigger-Style Manual Control
      Gas is released only when the trigger is pressed—reducing waste and enhancing control.
    • Preset Flow Rate Accuracy
      Delivers a consistent flow (e.g., 0.5 L/min to 1.0 L/min) as per device calibration requirements.
    • Tool-Free Connection
      Fast installation onto calibration gas cylinders—perfect for field operations and daily maintenance routines.
    • Lightweight & Portable
      Compact design ensures ease of transport with multi-gas kits.
    • Durable Brass or SS Options
      Suitable for non-reactive and reactive gases based on material selection.

    Specifications

    Feature Description
    Flow Rate Fixed (customizable from 0.1 to 8.0 L/min)
    Control Type Trigger-based manual activation
    Material Options Brass NP or Stainless Steel
    Inlet Connection CGA600, C10, or ¼” NPT
    Outlet Connection 3/16” Barb (4.8mm)
    Max Inlet Pressure Up to 3000 psig
    Use Type Non-refillable calibration gas cylinders

    Ideal Applications

    • Onsite calibration of gas detectors
    • Confined space entry kits
    • Environmental monitoring in fieldwork
    • Emergency gas leak simulations
