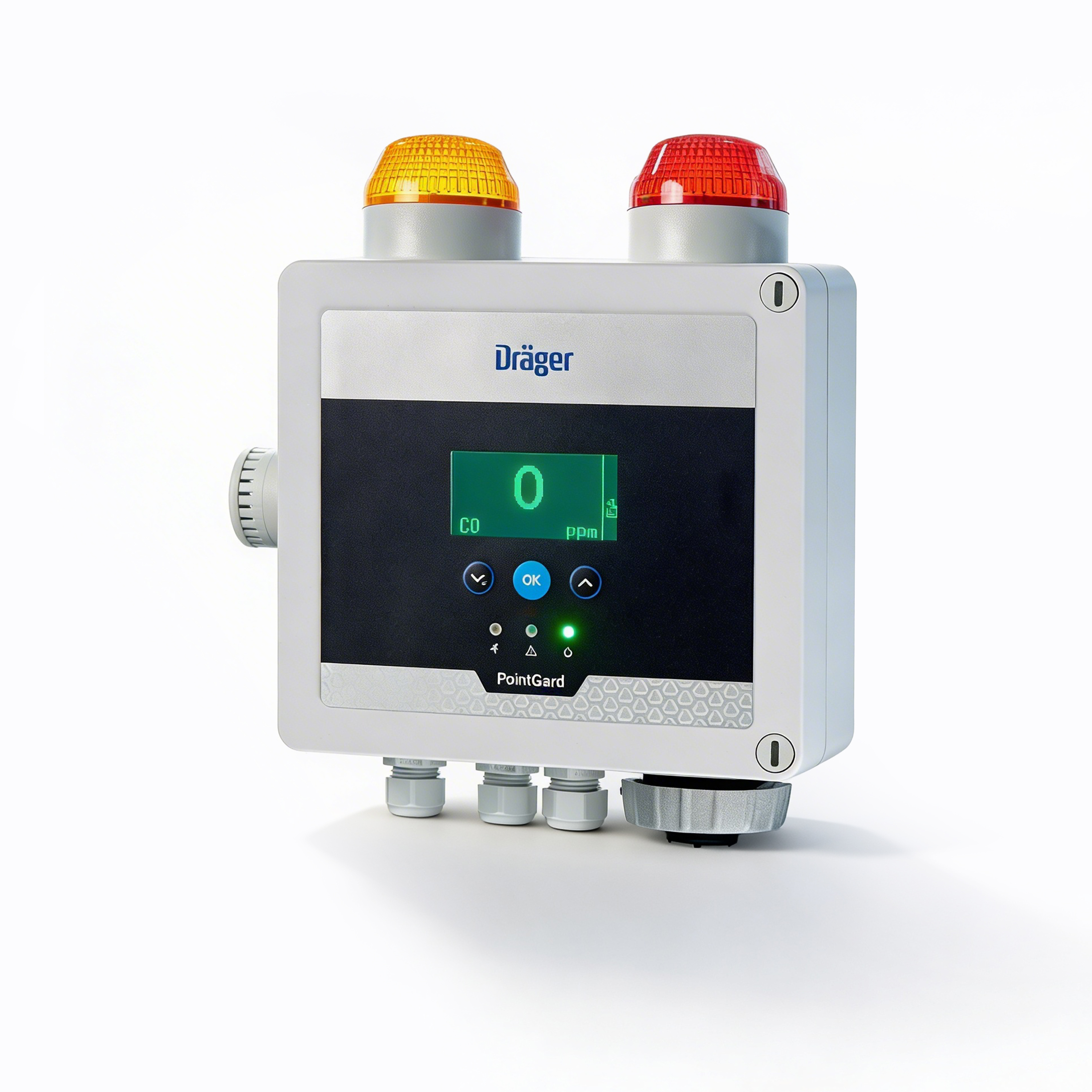

Ambient Safety Single-Channel, Standalone Gas MonitoringDräger PointGard 3100 is a single-channel, standalone gas detection instrument that measures oxygen or toxic gases continuously in the ambient atmosphere. Constructed using industrial-grade components such as integrated alarms, display, and internal controller, the device is mounted inside an IP66-coded housing and can be installed indoors as well as outdoors.Supplied with reliable Dräger electrochemical sensors, the 3100 series provides solid, consistent performance for more than 100 gases. AC or DC power, remote sensor mounting, and alarm relays mean that it is a plug-and-play safety system for laboratories, plant rooms, and controlled areas.Enquire Now
Specification Details
Gases Detected Toxic gases & oxygen
Sensor Type Electrochemical (DrägerSensor®)
Signal Output 4–20 mA (analog), HART®
Display 75mm LCD backlit screen + status LEDs
Alarm Outputs 2 alarm relays + 1 fault relay
Power Supply (AC/DC) 100-240 VAC or 10–30 VDC
Ingress Protection IP66
Operating Temperature -20°C to +50°C
Dimensions / Weight 255 x 280 x 120 mm / 3.9 kg
______________________________________
Applications
High-quality product designed for durability, performance, and reliability, perfect for everyday use and long-term value.
