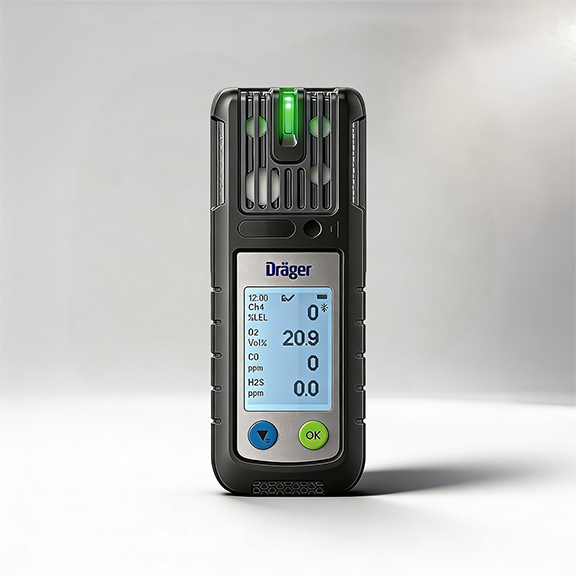

Dräger X-am® 5800

Dräger X-am® 5800

Long-Lasting, Bluetooth-Powered 6-Gas Monitoring with Real-Time Data Connectivity and Sensor FlexibilityThe Dräger X-am 5800 is a small, extremely rugged multi-gas detector that monitors a maximum of six gases at once. Made from CatEx SR, infrared (XD-IR), and PID sensors, it is supported by the Dräger Gas Detection Connect platform to provide real-time cloud-based management, data logging, and fleet management. It has tough detection in abusive industrial atmospheres, entry into confined spaces, and area monitoring use with low cost of ownership.Enquire Now

Product Highlights

Categories MULTI GAS DETECTORS, Portable Gas Detector Brand: Drager




Product Category Customized Solutions Services

Features

- Gas Channels: 1 to 6 simultaneous gases
- Sensor Options: CatEx SR, IR (XD-IR), PID neo, and 3x electrochemical XXS (1 Dual XXS)
- Connectivity: Bluetooth® 5.0 for live data transmission to Gas Detection Connect (via smartphone or X-dock)
- Data Management: Cloud-based logging, visualization, and reporting
- Certifications: ATEX, IECEx, CSA (Zone 0 use), RoHS, RED
- Protection Class: IP68 (dust- and water-resistant), Drop-tested >2m
- Battery Life:
  - CatEx: ~12 hrs (Bluetooth on)
  - PID: ~24 hrs
  - Infrared or EC-only: ~100 hrs
- Charging Time: <4 hrs
- Interface: Intuitive icon-based, language-free display
🛡️ Built for Safety
- Bodyguard Alarm: Manual distress + motionless alarm system
- Visual & Audible Alerts: Multi-color LEDs and >90 dB buzzer
- D-Light Indicator: Green “ready-to-use” LED confirmation
- Alarm Settings: Oxygen with 4 pre- and main alarm thresholds (high/low)

Specifications

Sensor Type	Gas	Range	Resolution	Life
CatEx SR	Methane, Propane, H2, etc.	0–100% LEL / 0–5 vol%	1% LEL / 0.1 vol%	>4 years
XD-IR (Ex & CO₂)	Combustibles / CO₂	0–100% LEL / 0–5 vol%	1% LEL / 0.01 vol%	>4 years
PID neo	VOCs (Isobutene, Benzene)	0–2,000 ppm	0.3 ppm	>3 years
XXS Series	O₂, CO, H₂S, SO₂, NO₂, NH₃, HCN, PH₃	Varies per sensor (0–10,000 ppm)	0.01–5 ppm	1.5–5 years
Dual Sensors (XXS)	Combined (e.g., O₂/CO, H₂S/CO)	As above	Dual output	>3 years

🌍 Use Cases

Confined Space Entry & Tank Monitoring
Industrial Manufacturing and Petrochemical Plants
Wastewater Treatment & Utilities
Marine and Offshore Platforms
Firefighting and Emergency Response
Fleet Gas Monitoring and Compliance Management

📦 Optional Accessories

X-am® Pump (External sampling pump)
Dräger X-dock® Calibration Station
Bump Test Station with/without gas
Charging Modules & Vehicle Mounts
Dräger Gas Detection Connect Licenses (Intro, Basic, Asset, Credits)
Leather pouches, RFID transponder kits, and color-coded sticker sets

📐 Technical Specifications

Dimensions: 130 × 48 × 44 mm
Weight: 220–250 g (sensor dependent)
Display: High-resolution matrix with icon interface
Temperature Range: -20°C to +50°C (Ex use: up to +50°C)
Humidity: 10–95% RH
Pressure Range: 700–1300 mbar
Battery Type: Rechargeable NiMH (User replaceable)
Data Logging: >90% compression, large storage capacity

Certifications & Compliance

ATEX: I M1 Ex da ia I Ma, II 1G Ex da ia IIC T4 Ga
IECEx: Ex da ia I Ma / IIC T4 Ga
CSA (US/CA): Class I, Div. 1, Groups A-D
EAC, RED, RoHS
Warranty:
- 4 years on device
- 3–5 years on most sensors
