Specifications
| Feature |
Specification |
| Pump Stroke Volume |
100 mL per bellows stroke (± tolerances) |
| Tube Diameter |
7 mm |
| Chemical Coverage |
150 gases and vapors |
| Typical Response Time |
One tube in ~10–30 s bellows cycles |
| Tube Accuracy |
±10 % relative (colorimetric stain measurement) |
| Safety Sleeve |
Dual-layer protection in case of breakage |
| Sample Range |
From low ppm to several thousand ppm, depending on tube type |
⚙️ Component Breakdown
- KwikDraw Bellows Pump: Ergonomic hand pump with quick sample stroke; models include basic and deluxe with accessories .

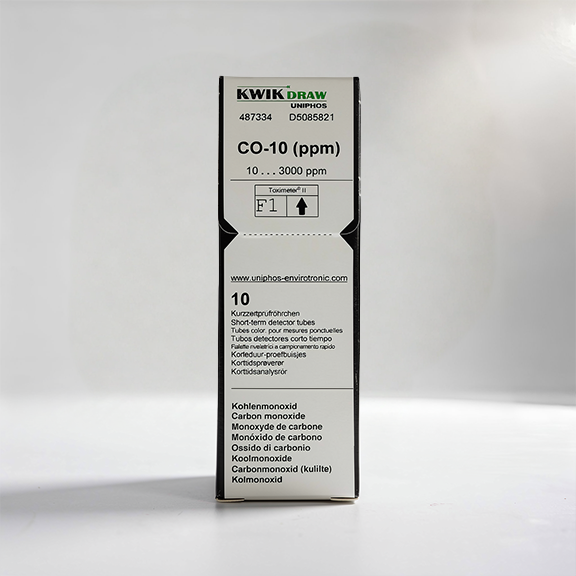

- Detector Tubes: Precision, pre-calibrated 7 mm tubes filled with reactive reagent and dual-scale stain chart .
- Safety Sleeve: Protective outer layering to contain fragments upon tube damage .
🧪 Product Range & Accessories
- KwikDraw Tubes: Standard tubes available in 10-packs, 24-month shelf life .
- KwikDraw Deluxe Pump: Enhanced model includes end-of-stroke indicator and carrying pouch .
- Action & Industry Kits: Custom packs for petrochemical, mining, or syrup contaminants .
- Smoke, PID Pre-Filters & Accessories: Accessories include smoke tube systems, VOC-zero filters for PID, and sampling hoses .
Applications
| Industry / Use Case |
Description |
| Petrochemical & Gas Industries |
Detect mercaptans, VOCs, and leak gases |
| Environmental Health & Safety |
Spot-check toxic industrial pollutants |
| Emergency Response & Hazmat |
Rapid field evaluation of chemical spills |
| Indoor Air Quality Monitoring |
Assess VOCs and combustion byproducts |
| Confined Space & Industrial Safety |
Confirm safe air before entry in tanks, vessels, or enclosures |
