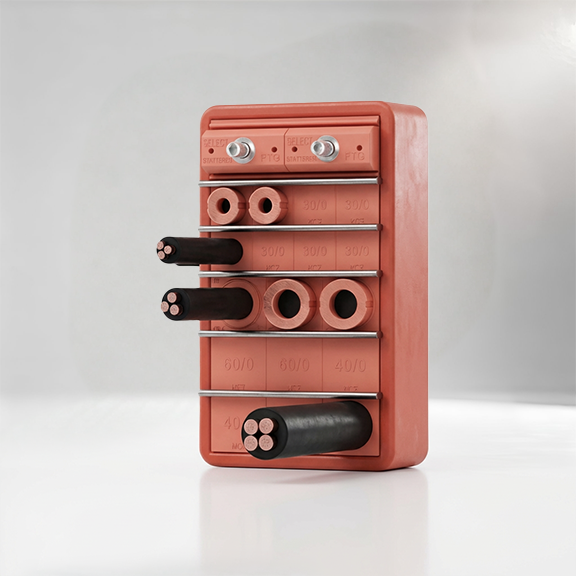

RGS STANDARD

RGS STANDARD

High-Performance Sealing Solutions for Marine and Offshore Applications. A robust and innovative maritime and offshore transit system, the MCT Brattberg RGS System provides fire, water supply, gas, EMI protection from wind turbines, cables, conduits or other components. For safety and reliability reasons, the RGS system is designed to ensure that bulkheads and decks are securely installed without hazardous materials.Enquire Now

Enguire Now

Product Highlights

Categories , Brand:




    Features

    • The utilization of a frame, rubber blocks and stoichiometric compression unit results in flexible design that can accommodate different cable and pipe sizes.
    • Components made of Lycron, a flame-resistant and halogen-free material, are used for their durability and safety.
    • Welded, bolted and cast-in frames are available so that they can be hung in many ways.
    • Standard frames are available in eight sizes, with internal widths of 60.5 1 mm for sizes 1, 3, 5, and 12, and 120.5 to 8 x 1.
    • The High Sealing Performance ensures water-tightness up to 6 bar and gas- tightness of upto 4 bar under catastrophic pressure loads.
    • Fire Resistance: Meets maritime fire resistance standards A0, A60, H0 and H60 and is compliant.
    • Providing dust and water protection with IP65,IP66 (for Type 3R,4X or 12), IP67,PVC-based, and NEMA 250 ratings.

    Specifications

    Parameter                                             Specification.

    Internal dimensions           60.5 1 mm in sizes 1, 3, 5, and 8, and 120.5 to 1 cm in size 2.

    Depth                                         60 mm (2.36 inches)

    Materials                                  Steel, Stainless Steel or Aluminium,.

    Installation Type                  welding, bolting or cast-in is the mounting method.

    Fire Resistance:                     0–A60 H0, H60 and H120 (described below) Fire Resistance. Water-Tightness                      6 bar during catastrophic pressure load.

    Gas-Tightness                              4 bar (Catastrophic pressure load)

    Among the Ingress Protection categories are Type 3R, 4X models, 128, and NEMA 250. Temperature Range -65°C to +70°C.



    ⚙️ System Components. Frame:

    • The structure supports and holds the sealing elements.
    • Rubber blocks can be shaped to fit cables and pipes, sealing them with precision.
    • Seal strength is improved by the compression unit that applies pressure to the rubber blocks.
    • Strengthening the structure with stayplates prevents deformation under load. Endpacking is used to seal the edges of the transit, preventing the entry of hazardous materials. ________________________________________

    🧪 Applications.

    • Industry / Use Case Description.
    • Incorporating oil & gas sealant into offshore platforms and wells.
    • Marine & Shipping Guaranteeing Waterproof bulkheads and fire-resistant decks.
    • The submarine and naval vessels offer EMI shielding and pressure resistance. “
    • Protection of critical infrastructure from harmful substances ingress at industrial facilities.

    Certifications & Compliance

    • American Bureau of Shipping standards were met and ABS approved..
    • DNV-GL Certified professionals meet the requirements of Det Norske Veritas and Germanischer
    • Lloyd regulations.
    • International maritime standards are met by the Lloyd’s Register.
    • Using the right components can make explosive atmospheres work well with IECEx/ATEX.
