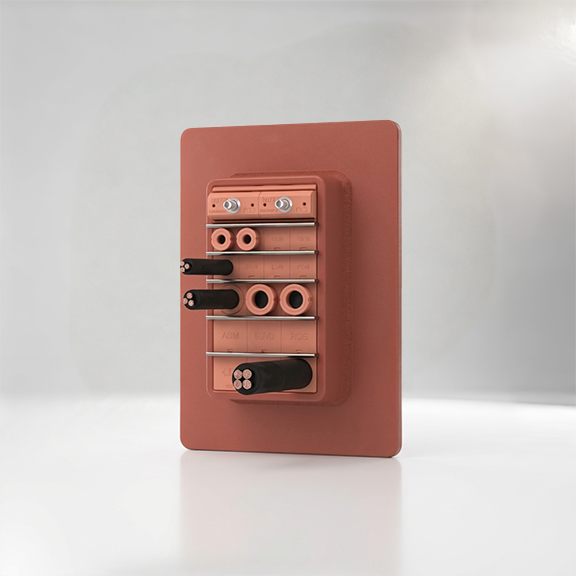

RGSF

Features

The flanged frame design allows for welding into a slightly larger hole in the frame for different installation scenarios.
Lycron, a flame-resistant and non-halogenous substance, is used in high-performance materials to provide safety and reliability.
The mounting options for frames can be weldable, boltable or castable and are dependent on the installation specifications.
Standard frames are offered in eight sizes, with internal widths of 60.5 1 mm for sizes 1, 3, 5, and 7, as well as 120.5 or even 120.7 to 8 x 1.5%.
Increased Sealing Performance: Up to 6 bar of water and 4 bar with gas pressure.
The fire protection system meets the maritime fire resistance standards A0, A60 and H0 as well as H60/H120.
With IP65, IP66, and IP68 ratings (Type 3R, 4X or 12), dust and water ingress can be prevented with the Ingress Protection.

Parameter	Specification
Internal Width	60.5 ± 1 mm (Sizes 1, 3, 5, 7); 120.5 ± 1 mm (Sizes 2, 4, 6, 8)
Depth	60 mm (2.36 inches)
Material	Steel, Stainless Steel, or Aluminium
Mounting Method	Welded, Bolted, or Cast-in
Fire Resistance	A0, A60, H0, H60, H120
Water-Tightness	6 bar (Catastrophic pressure load)
Gas-Tightness	4 bar (Catastrophic pressure load)
Ingress Protection	IP65, IP66, IP67, IP68; NEMA 250 – Type 3R, 4X, 12
Temperature Range	-65°C to +70°C

⚙️ System Components

Structure: Supports the framework and contains sealing components.
Supporting Blocks of Rubber: Adjustable supporting blocks designed to fit the cable and pipe diameter, creating a tight seal.
Compression System: Compresses the rubber blocks, optimizing the seal performance.
Stayplates: Reinforces the framework to resist deformation due to stress.
Endpacking: Seals the transit ends against harmful material entry.

________________________________________

Applications

Industry / Application Scenario

Description

Oil & Gas Sealing offshore rig and platform penetrations

Marine & Shipping

Watertight and fire-resistant bulkheads and decks

Submarine & Naval Vessels

EMI shielding and pressure resistance

Industrial Facilities

Shielding sensitive infrastructure from damaging material intrusion

ABS Approved: Satisfies American Bureau of Shipping requirements.
DNV-GL Certified: Satisfies Det Norske Veritas – Germanischer Lloyd requirements.
Lloyd’s Register: Conformance to worldwide maritime standards.
IECEx / ATEX: Compatible with explosive environments when applied with correct components.
CE Marked: Meets the European Union safety, health, and environmental standards.
