SENKO SGT-P

SENKO SGT-P

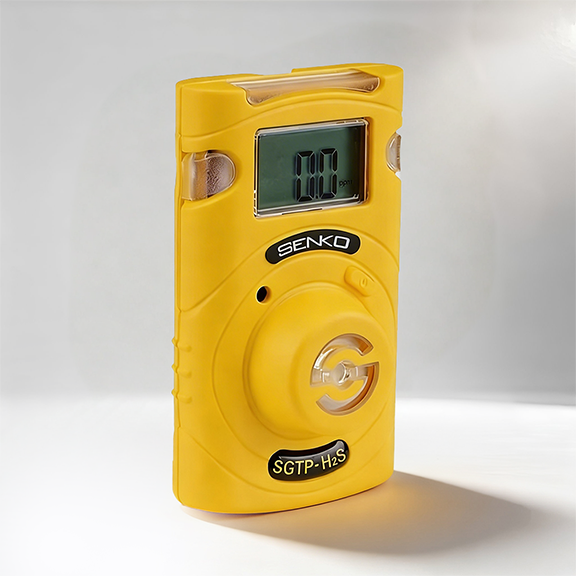

SGT-P is a single replaceable gas detector designed to detect oxygen deficiency and the presence of toxic gas in the ambient environment. SGT-P is the replaceable type of gas sensor and battery. When activated, SGT-P continuously monitors ambient air for the presence of a specific gas and alerts the user to potentially unsafe exposure with LED, vibrating, and audible alarms in the event that gas concentration exceeds alarm set points.Enquire Now

Enguire Now

Product Highlights

Categories , Brand:




    Features

    • Sensor and battery replacement
    • Power on / off available
    • Configuration via exclusive IR Link

    Specifications

    Model SGT-P
    Sensor Type Electrochemical
    Measuring Type Diffusion Type
    Case Material Rubber Enclosure
    Dimension 54 (W) x 91 (H) x 32 (D)mm
    Weight 93g (Toxic), 104g (O2) / Battery, Clip included
    Operating Temperature -40℃~+50℃ (for CO, H2S, H2, NH3, and No2)

    -35℃~+50℃ (for O2 and SO2)
    Operating Humidity 5%~95% RH (Non-condensing)
    Operating Life 24 months, Based on 2 minutes of alarm per day
    Event Log Recent 30 alarms
    IP IP 67
    Alarm Red Flashing LEDs (Light-Emitting Diode),

    90dB audible alarm at a distance of 10cm, Vibration alarm
    Display Liquid Crystal Display (LCD)
    Battery Manufacture : Vitzrocell, P/N : SB-AA02 (P),

    System : Lithium Primary Battery,

    Nominal Voltage : 3.6V, Nominal capacity : 1.2Ah
    Components Calibration Cap, Manual, Calibration and Test Certificate
    Certification ATEX II 1 G Ex ia IIC T4 Ga
    IECEx Ex ia llC T4 Ga
    CSA/UL Ex ia llC T4 Ga

    Class I, Zone 0, AEx ia IIC T4 Ga

    Class I, Division 1, Groups A, B, C, D, T4
    INMETRO Ex ia llC T4 Ga
    PESO Ex ia llC T4 Ga
    etc. RoHs2, RCM, REACH, WEEE, FCC

    Certifications & Compliance

    • ATEX: II 1 G Ex ia IIC T4 Ga
    • IECEx: Ex ia IIC T4 Ga
    • CSA/UL: Class I, Division 1, Groups A-D, T4
    • INMETRO: Ex ia IIC T4 Ga
    • RoHS2, RCM, REACH, WEEE, FCC
