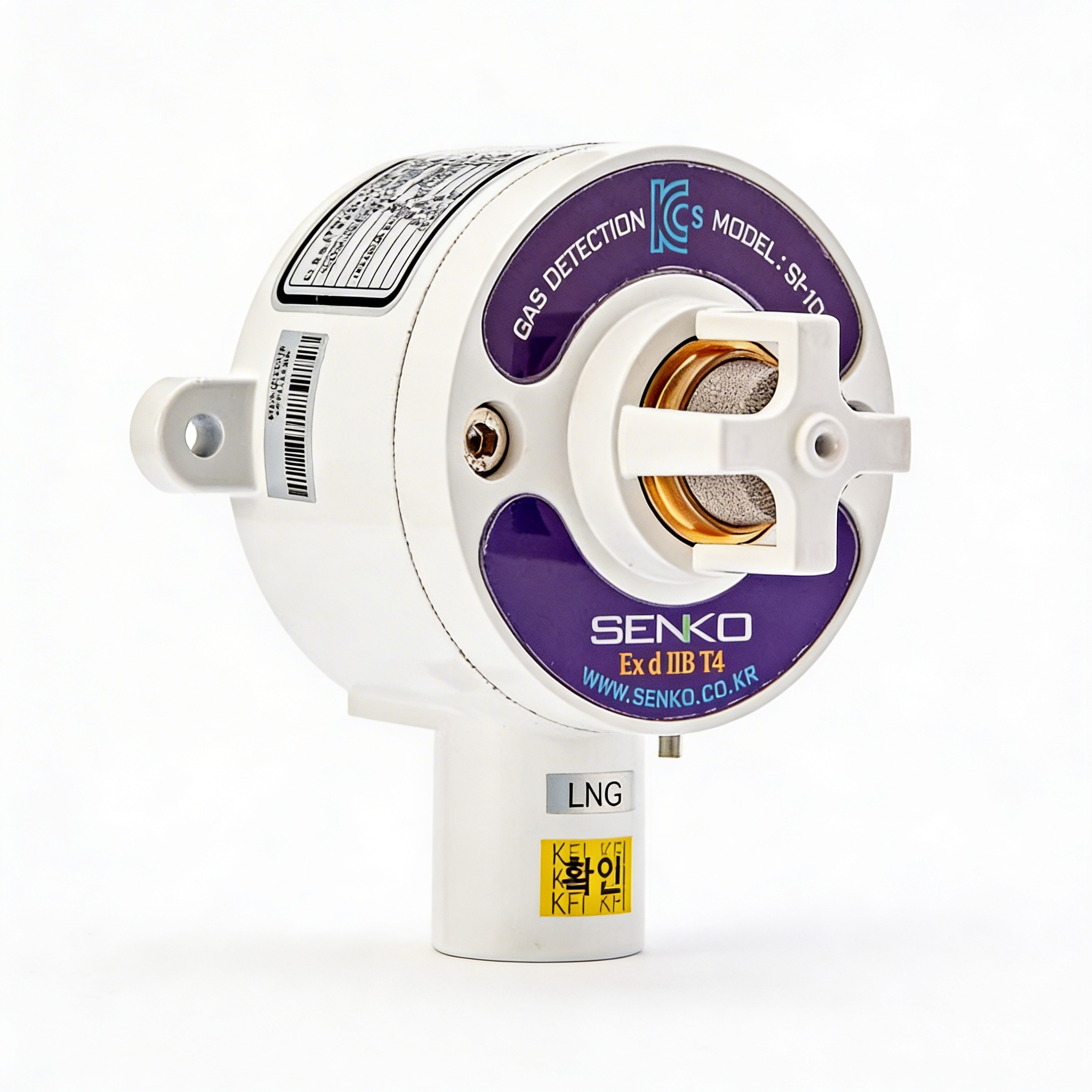

SI-100D is a combustible (LNG/LPG) gas leak detector that consists of a sensing unit andreceiver. This is used to detect gas leaks in the pipe or valve. SI-100D can be used withpresent any indicators and PLC using analog output (4-20mA). SI-100D is a low-pricedcompact and light entry-level product.
The smallest and lowest-cost methane and propane gas detector.A suitable gas leak detector for LNG/LPG is the Senko SI-100D. Its catalytic sensor offers precise measurement of 0-100% LEL flammable gases. Explosion-proof, very compact in size, and 4 to 20 mA analogue output make the SI-100D the ideal option for areas where cost-effective investment for simple gas safety monitoring is required.
| Specification | Details |
| Detecting Method | Diffusion Type |
| Target Gas | Combustible Gas |
| Sensor Type | Catalytic |
| Detection Range | 0 to 100% LEL |
| Accuracy | ± 3% Full Scale |
| Output Signal | 4–20 mA analog |
| Signal Transmission Distance | Up to 2,500 meters (analog output) |
| Operating Conditions | -20°C to +60°C, 5–95% RH (non-condensing) |
| Power Supply | 24V DC (≤ 2.0W consumption, 80mA @ 24V DC) |
| Dimensions | 93(W) × 106(H) × 89(D) mm |
| Weight | Approx. 0.6 kg |
| Explosion Proof Rating | Ex d ⅡB T4 |
High-quality product designed for durability, performance, and reliability, perfect for everyday use and long-term value.
