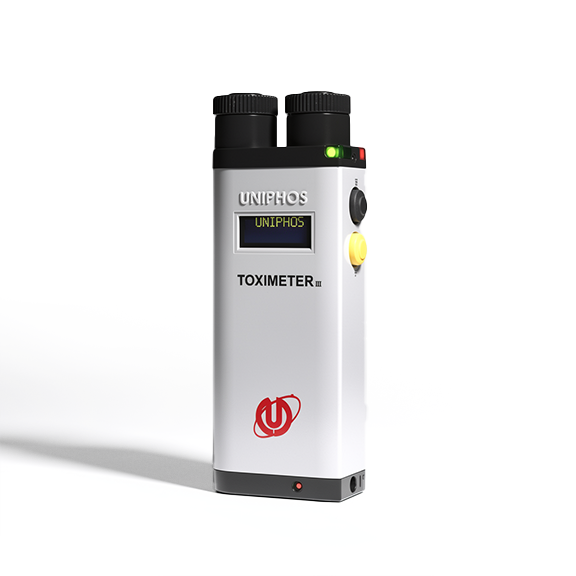

UNIPHOS TOXIMETER - III – Electronic Gas Sampling Pump

Features

✅ 3-in-1 operation: Detector tubes, gas bags, impingers, or smoke test setups
✅ Electronic diaphragm pump with fixed 180 ml/min flow rate
✅ Detector tube mode with 100 mL per stroke, compatible with F1–F8 resistance ranges
✅ Fixed-time mode: Adjustable 5 to 480 minutes
✅ Fixed-volume mode: Adjustable 1 to 100 liters
✅ Leakage diagnostics ensures instrument integrity and sampling accuracy
✅ Differential pressure sensor (0–5 psi) to regulate sample volume
✅ 8×2 OLED screen with intuitive 2-button operation
✅ Automatic power-off after 10 minutes of inactivity
✅ Rechargeable Li-ion battery with smart charge protection

Parameter	Details
Model	UNIPHOS TOXIMETER – III
Sampling Mechanism	Electronic diaphragm pump
Flow Rate	180 ml/min (fixed)
Operation Modes	1) Detector tube (100 mL/stroke) 2) Fixed time (5–480 min) 3) Fixed volume (1–100 L)
Pressure Sensor	Differential, 0–5 psi
Display	8×2 OLED
Indicators	2 LEDs (Red + Green), 1 Piezo buzzer
Battery	7.4 V, 1400 mAh Li-ion rechargeable
Operating Time	Up to 8 hours on full charge
Charging Time	~5 hours (full recharge)
Auto Shutdown	After 10 minutes idle
Accuracy	±5%
Operating Temperature Range	-10°C to +50°C
Dimensions (H x W x D)	197 mm x 72 mm x 33 mm
Weight	Approx. 500 g
Housing Material	ABS plastic

⚙️ Sensor/Component Breakdown

Diaphragm Pump Module: Provides regulated, electronically controlled flow
Flow Resistance Calibration: Compatible with detector tubes F1–F8 (40–200 mbar)
Differential Pressure Sensor: Maintains accurate sampling volume
OLED Display: Clear real-time readout of mode and parameters
Two-Button Interface: Full control of all functions from front panel
Visual & Audible Alerts: Dual LEDs and piezo buzzer for operation feedback
Smart Battery Circuit: Protects against overcharging and ensures long battery life

Applications
- Precision sampling with gas detector tubes
- Industrial hygiene monitoring using gas sample bags
- Sample collection for chemical analysis via impingers
- Smoke tube-based leak and flow testing
- Environmental air quality studies
- Occupational health assessments
- Mobile field operations and lab research setups
✅ Certifications & Compliance
- Designed and manufactured by Uniphos Envirotronic Pvt. Ltd., India
- Inbuilt diagnostics and sensor feedback for performance assurance
- Complies with flow resistance compatibility (40–200 mbar)
