Specifications

Feature                          Specification

Internal Width           60.5 ±1 mm (Sizes 1, 3, 5, 7) / 120.5 ±1 mm (Sizes 2, 4, 6, 8)

Depth                            60 mm (Standard) / 120 mm (Extended)

Material Options     Steel, Stainless Steel, Aluminum

EMC Shielding           >100 dB (10 kHz – 30 MHz), >60 dB (30 MHz – 600 MHz), >50 dB (600 MHz – 2 GHz)

Installation Type       Welded into pre-cut hole in deck or bulkhead

Frame Sizes                 1–8

Grounding/Bonding       Compatible with standard presswedge or endpacking

________________________________________

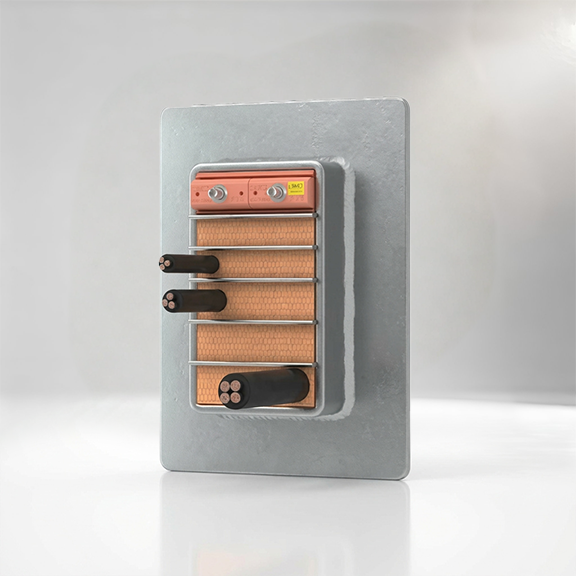

⚙️ System Components

• E-Standard Block: Copper sheet inherent to EMP, EMP, and ESD protection
• E-AddBlock: Cable size blocks that are adjustable with EMC and grounding functions
• E-SpareBlock: Space filler blocks that preserve EMC and grounding functions
• E-PTG Presswedge: Compression block that improves seal and EMC functionality
• E-STG Endpacking: Seals frame where compression plate interfaces top of frame
• Stayplate: Stability between rows of blocks
• Blanking Plate: Seals frame prior to block mounting; IP65/66 ingress protection
• Lubricant: Used for ease of installing Lycron components
• Installation Tools: Packing Tool L/S, Endpacking Puller, Quick Release Spanner, Cable Separator, Spacer Tool, Block Selector, Tweezers, EMC Marking Template

________________________________________

Accessories & Add-ons

• E-ALF Cabinet Seal: Simple installation tool-free
• CCM – Casting Module: Accommodates casting applications
• EMC Marking Template: Ensures earth contact for every cable
• Welding Clamp: Accommodates secure welding during install

Applications

• Marine & Offshore: Submarines, ships, vessels with reliable sealing requirements
• Land-Based: Industrial and infrastructure buildings with EMC cable/pipe transits requirements
• Industrial: Where fire safety compliance and grounding, bonding are necessary
