RGS -BTB

RGS -BTB

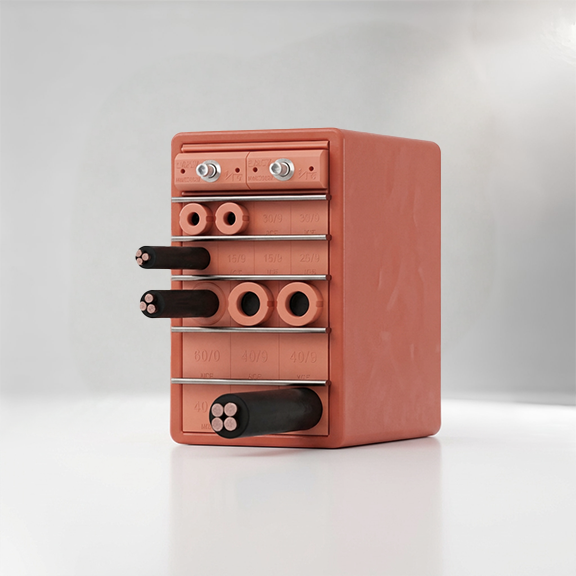

Two-Sided Sealing Solution for Improved Safety in Marine & Offshore UseMCT Brattberg RGSbtb is a high-performance, modular transit cable and pipe for offshore and hazardous marine environments. It has a double-sided seal system with added protection against fire, water, gas, and electromagnetic interference (EMI). The system is employed in applications requiring safety and reliability.Enquire Now

Enguire Now

Product Highlights

Categories , Brand:




    Features

    •  Two-Sided Sealing: Both sides of the RGSbtb system are filled with the sealing medium, providing on-site pressure testing and twice the safety of regular transits.
    • Excellent Sealing Performance: Seals watertight to 6 bar and gastight to 4 bar in the case of catastrophic pressure loads.
    •  Fire Resistance: Meets maritime fire resistance regulations A0, A60, H0, H60, and H120.
    •  Ingress Protection: Provides IP65, IP66, IP67, IP68, and NEMA 250 ratings (Type 3R, 4X, 12), which provide ingress protection against water and dust.
    •  EMC Shielding: The E-RGSbtb type includes electromagnetic compatibility (EMC) shielding, which protects delicate electronics from electromagnetic interference.
    •  Flexible Mounting Options: Frames are weldable, bolt-on, or cast in place, which provides flexibility to accommodate various installation demands.

    Specifications

    Parameter                                              Specification

    Internal Width                                  60.5 ± 1 mm (Size 1, 3, 5, 7); 120.5 ± 1 mm (Size 2, 4, 6, 8)

    Depth                                                     200 mm (7.87 inches)

    Frame Thickness  Ends:              10 mm (0.39 inches); Sides: 12 mm (0.47 inches)

    Material                                                Steel, Stainless Steel, or Aluminium

    Mounting Method                           Welded, Bolted, or Cast-in

    Fire Resistance                         A0, A60, H0, H60, H120

    Water-Tightness                        6 bar (Catastrophic pressure load)

    Gas-Tightness                           4 bar (Catastrophic pressure load)

    Ingress Protection                  IP65, IP66, IP67, IP68; NEMA 250 – Type 3R, 4X, 12

    EMC Shielding                          Available in E-RGSbtb variant

    ________________________________________

    ⚙️ System Components

    • Frame: Provides structural support to sealing pieces.
    • Rubber Blocks: Adjustable pieces with pliable sizes to accommodate cables and pipes, creating a secure seal.
    • Compression Unit: Squeezes the rubber blocks, securing the seal.
    • Stayplates: Gives the structure strength and resists deforming under load.
    • Endpacking: Seals transits’ edges so toxic material does not enter.

    Certifications & Compliance

    • ABS Approved: American Bureau of Shipping compliance.
    • DNV-GL Certified: Det Norske Veritas – Germanischer Lloyd compliance.
    • Lloyd’s Register: Compliance with international maritime standards.
    • IECEx / ATEX: Suitable for explosive atmospheres when used with the correct components.
    • CE Marked: Complies with European Union health, safety, and environmental standards.
