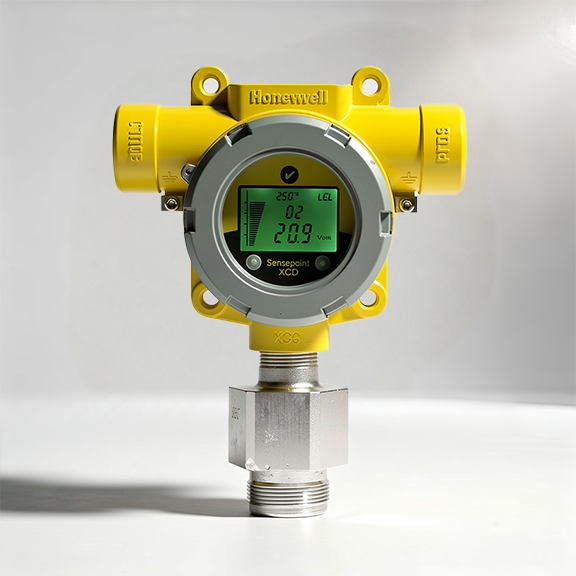

Sensepoint XCD RFD (Remote Flammable Detector)

A Honeywell Sensepoint Remote Flammable Gas Detector RFD is an RFG. High-throughput remote sensing of volatile gases.e. Honeywell’s Sensepoint XCD RFD (Remote Flammable Detector) uses the remote sensor to measure flammable gases in Zone 1 Hazard Division 1. It is an integrated gas detector. The RFD is designed for extreme conditions such as remote sensor mounting, which requires the use of Honeywell’s powerful XCD controller and a remote-mounted catalytic bead sensor. It is explosion proof, easy to maintain, and provides non-intrusive calibration with 3-color status LEDs and smart diagnostics for industrial use. Additionally, it has flexible gas detection. Enquire Now

Product Highlights




    Features

    • Remote Sensor Mounting. For difficult areas, the sensor head can be positioned up to 15 meters away from transmitter/controller. This is an excellent option.
    • Compatible with Flammable Gases.
    • The catalytic bead sensor is specifically designed for detecting methane, propane, hydrogen, and other hydrocarbons.
    • Smart 3-Color LED Status Ring.
    • At a distance, one can see the alarm in red while Green is considered normal.
    • Magnetic Wand Interface. Enables one to maintain and calibrate the unit without having to open the case.
    • Global Certifications. Authorized for use in ATEX, IECEx, and UL Class I Div 1, hazardous zones
    • Flexible Output Options. Allows for the use of analog (4–20 mA), Modbus RTU, and relay outputs in any safety system.

    Specifications

    Feature Details
    Detection Flammable gases (LEL level)
    Sensor Type Catalytic bead (remote mounted)
    Measuring Range 0–100% LEL
    Output Signal 4–20 mA, 3 relays, RS-485 Modbus
    Power Supply 18 to 32 VDC
    Display LCD with LED status ring
    Operating Temperature -40°C to +65°C
    Enclosure Aluminum or stainless steel (IP66)
    Remote Cable Length Up to 15 meters
    Certifications ATEX, IECEx, UL, CSA, CE

    Applications

    • Offshore oil platforms and FPSOs
    • Petrochemical storage facilities
    • Refineries and gas compressor stations
    • Hydrogen and ammonia production
    • High-temperature confined areas requiring remote detection
